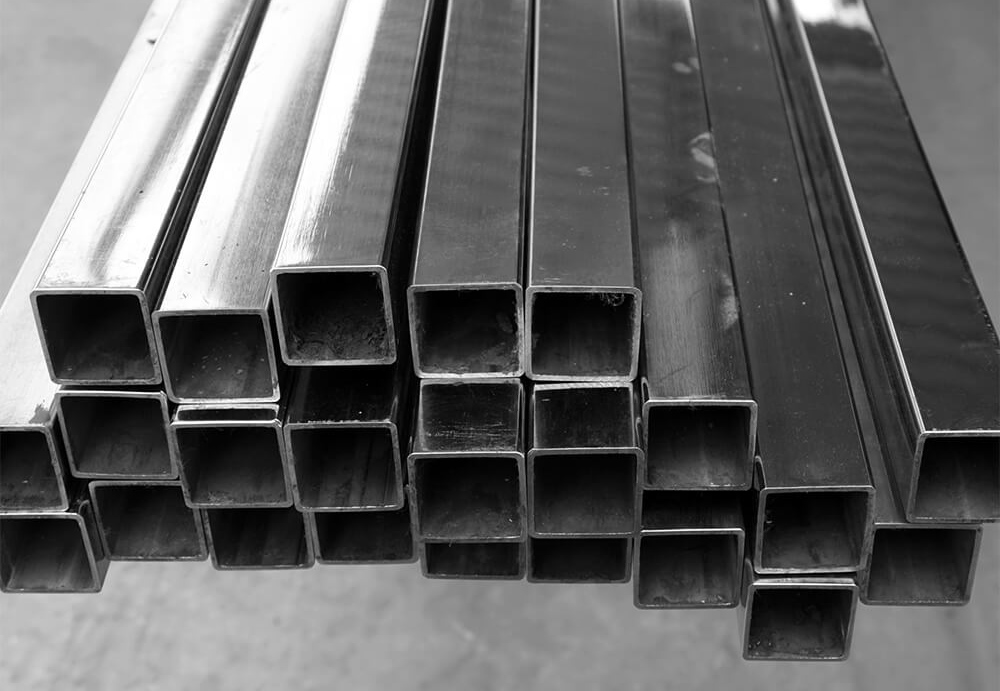

Our Square Hollow Sections (SHS) are precision-engineered to provide exceptional stability and strength, making them a cornerstone in a variety of construction and engineering projects. These sections are known for their excellent strength-to-weight ratio, offering maximum load-bearing capacity without adding unnecessary weight. The uniform thickness of our SHS ensures consistent performance across all applications, making them ideal for structural frameworks, machinery fabrication, and even furniture manufacturing. Available in a range of sizes and thicknesses, our square hollow sections are designed to meet the diverse needs of modern construction and industrial projects. With optional coatings available, these sections are also equipped to resist corrosion, enhancing their durability and extending their service life. Whether you're constructing a high-rise building, fabricating industrial equipment, or designing modern furniture, our SHS provides the reliability and versatility you need.

Technical Data

SHS Thickness Sec Area Unit Wt Moment of Inertia Radius of Gyration Elastic Modulus Torsional Constants Outer Surface Area per m
lxx lyy
DXB t A w cm4 cm4 rxx ryy zxx zyy J B
mm mm cm2 kg/m cm cm cm3 cm3 cm4 cm3 cm2
25x25 1.6 1.43 1.12 1.28 1.28 0.94 0.94 1.02 1.02 1.96 1.46 0.092
2.0 1.74 1.36 1.48 1.48 0.92 0.92 1.19 1.19 2.29 1.68 0.090
2.6 2.16 1.69 1.72 1.72 0.89 0.89 1.38 1.38 2.66 1.92 0.087
3.2 2.53 1.98 1.89 1.89 0.86 0.86 1.51 1.51 2.96 2.07 0.084
32x32 2.0 2.30 1.80 3.36 3.36 1.21 1.21 2.10 2.10 5.30 5.30 0.118
2.6 2.88 2.26 4.02 4.02 1.18 1.18 2.51 2.51 6.45 6.45 0.115
3.2 3.42 2.69 4.54 4.54 1.15 1.15 2.84 2.84 7.41 7.41 0.112
36x36 2.0 2.78 2.18 5.88 5.88 1.46 1.46 3.10 3.10 9.31 9.31 0.142
2.6 3.51 2.75 7.14 7.14 1.43 1.43 3.76 3.76 11.51 11.51 0.139
3.2 4.19 3.29 8.18 8.18 1.40 1.40 4.30 4.30 13.45 13.45 0.136
4.0 5.03 3.95 9.26 9.26 1.36 1.36 4.87 4.87 15.67 15.67 0.131
40x40 2.6 3.72 2.92 8.45 8.45 1.51 1.51 4.22 4.22 13.63 13.63 0.147
2.9 4.09 3.21 9.11 9.11 1.49 1.49 4.56 4.56 14.85 14.85 0.145
3.2 4.45 3.49 9.72 9.72 1.48 1.48 4.86 4.86 16.00 16.00 0.144
4.0 5.35 4.20 11.07 11.07 1.44 1.44 5.54 5.54 18.75 18.75 0.139s
49.5x49.5 2.6 4.70 3.69 16.91 16.91 1.90 1.90 6.83 6.83 27.19 27.19 0.185
2.9 5.19 4.07 18.37 18.37 1.88 1.88 7.42 7.42 29.81 29.81 0.183
3.8 6.28 4.93 21.42 21.42 1.85 1.85 8.66 8.66 35.54 35.54 0.179
4.5 7.58 5.95 24.64 24.64 1.80 1.80 9.96 9.96 42.15 42.15 0.175
60x60 2.6 5.80 4.55 31.33 31.33 2.33 2.33 10.44 10.44 50.08 50.08 0.227
2.9 6.41 5.03 34.21 34.21 2.31 2.31 11.40 11.40 56.12 56.12 0.225
3.2 7.01 5.50 36.94 36.94 2.30 2.30 12.31 2.31 60.02 60.02 0.224
4.0 8.55 6.71 43.55 43.55 2.26 2.26 14.52 14.52 72.41 72.41 0.219
4.8 10.01 7.85 49.22 49.22 2.22 2.22 16.41 16.41 83.86 83.86 0.215
72x72 3.2 8.54 6.71 66.32 66.32 2.79 2.79 18.42 18.42 106.81 106.81 0.272
4.0 10.47 8.22 79.03 79.03 2.75 2.75 21.95 21.95 129.85 129.85 0.287
4.8 12.31 9.66 90.31 90.31 2.71 2.71 25.09 25.09 151.55 151.55 0.283
80x80 3.2 9.57 7.51 92.71 92.71 3.11 3.11 23.18 23.18 148.55 148.55 0.304
4.0 11.75 9.22 111.04 111.04 3.07 3.07 27.76 27.76 181.22 181.22 0.299
4.8 13.85 10.87 127.58 127.58 3.04 3.04 31.89 31.89 212.26 212.26 0.295
91.5x91.5 3.6 12.32 9.67 158.49 158.49 3.58 3.58 34.21 34.21 251.17 251.17 0.347
4.5 15.40 11.88 187.57 187.57 3.52 3.52 41.00 41.00 306.78 306.78 0.343
5.4 17.85 14.01 215.68 215.68 3.48 3.48 47.14 47.14 359.76 359.76 0.338
100 x 100 4.0 14.95 11.73 226.35 226.35 3.89 3.89 45.27 45.27 364.75 364.75 0.379
5.0 18.36 14.41 271.10 271.10 3.84 3.84 54.22 54.22 441.84 441.84 0.374
6.0 21.63 16.98 311.47 311.47 3.79 3.79 62.29 62.29 511.80 511.80 0.369
113.5 X 113.5 4.8 20.28 15.92 393.30 393.30 4.40 4.40 69.30 69.30 637.45 637.45 0.429
5.4 22.60 17.74 432.58 432.58 4.38 4.38 76.23 76.23 708.69 708.69 0.426
132 X 132 4.8 23.83 16.71 634.39 634.39 5.16 5.16 96.12 96.12 1018.30 1018.30 0.503
5.4 26.59 20.88 700.11 700.11 5.13 5.13 106.08 106.08 1134.25 1134.25 0.500
150 x 150 4.0 22.95 18.01 807.82 807.82 5.93 5.93 107.71 107.71 1273.46 1273.46 0.579
5.0 28.36 22.26 982.12 982.12 5.89 5.89 130.95 130.95 1569.09 1569.09 0.574
6.0 33.63 26.40 1154.91 1154.91 5.84 5.84 152.7g 152.7g 1856.18 1856.18 0.569
7.0 38.78 30.44 1299.44 1299.44 5.79 5.79 173.26 173.26 2134.99 2134.99 0.564
8.0 43.79 44.38 1443.00 1443.00 5.74 5.74 192.40 192.40 2405.78 2405.78 0.559
180 x 180 4.0 27.75 21.78 1421.74 1421.74 7.16 7.16 157.97 157.97 2224.31 2224.31 0.899
5.0 43.36 26.97 1736.87 1736.87 7.11 7.11 192.99 192.99 2747.93 2747.93 0.694
6.0 40.83 32.05 2036.52 2036.52 7.06 7.06 226.28 226.28 3259.23 3259.23 0.689
7.0 47.18 33.03 2321.04 2321.04 7.01 7.01 257.89 257.89 3758.53 3758.53 0.684
8.0 53.39 41.90 2590.73 2590.73 6.97 6.97 287.86 287.86 4246.16 4246.16 0.679
220x220 4.0 34.15 26.61 2639.14 2639.14 8.79 8.79 239.92 239.92 4099.49 4099.49 0.859
5.0 42.36 33.25 3238.02 3238.02 8.74 8.74 294.37 294.37 5076.22 5076.22 0.854
6.0 50.43 39.59 3813.36 3913.36 8.70 8.70 346.67 346.67 6034.73 6034.73 0.849
7.0 58.38 45.83 4365.55 4365.55 8.65 8.65 396.67 396.67 6974.82 6974.82 0.844
8.0 66.19 51.96 4894.99 4894.99 8.60 8.60 445.00 445.00 7897.48 7897.48 0.839
250x250* 4.0 38.95 30.57 3907.30 3907.30 10.02 10.02 312.58 312.58 6045.40 6045.40 0.979
5.0 48.36 37.96 4805.01 4805.01 9.97 9.97 384.40 384.40 7494.83 7494.83 0.974
6.0 57.83 45.24 5672.00 5672.00 9.92 9.92 453.76 453.76 8920.44 8920.44 0.989
7.0 66.78 52.42 6508.73 6508.73 9.87 9.87 520.70 520.70 10322.70 10322.70 0.964
8.0 75.79 59.50 7315.65 7315.65 9.82 9.82 585.25 585.25 11702.07 11702.07 0.959
